A Guide to the Different Types of Chimney Parts

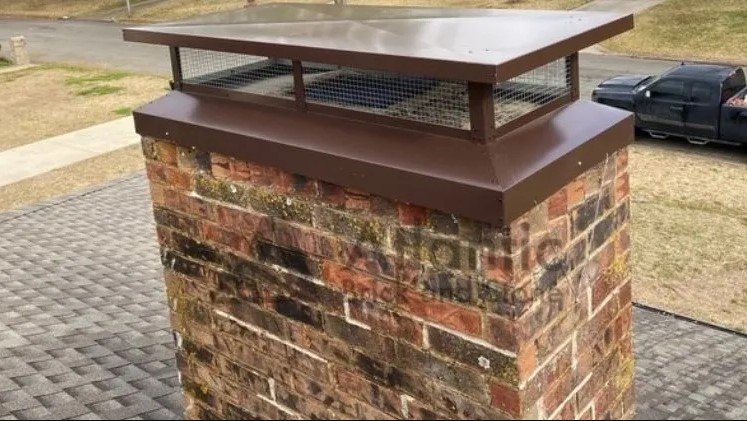

Chimney Cap

A chimney cap is a protective covering that sits on top of your chimney, serving as a shield against outdoor elements such as debris, rainwater, and animals. It is an essential component for any chimney, as it can prevent costly repairs and ensure the safety of your home.

There are mainly two types of chimney caps based on their design and functions:

• Single Flue Chimney Caps: Designed to cover the top of single flue chimneys, these caps come in various sizes and designs. Their primary function is to keep out debris, animals, and rainwater, but they can also keep sparks and embers from flying out of the chimney.
• Multi-Flue Chimney Caps: Ideal for those with multiple flue chimneys, these caps cover the entire top and protect all the flues. They provide maximum protection against wind-driven rain and debris, as well as a more comprehensive mesh screen for better ventilation.

Not having a chimney cap or not having a functional one can lead to various issues such as:

• Water and Moisture Damage: Without a cap, rainwater can easily penetrate your chimney, leading to moisture damage to the chimney components, such as the flue lining, damper, and even the ceiling and walls.
• Animal Infestation: Open chimneys are an open invitation to animals like birds, raccoons, squirrels, and even bats, who can nest inside and block the flue, causing smoke buildup and even starting chimney fires.
• Fire Hazards: Without a cap, sparks and embers from a fire can escape through the chimney and ignite potentially flammable materials like leaves, branches, or even your neighbor’s roof.

Chimney Crown

A chimney crown is a concrete or metal cap that sits at the top of your chimney, covering the opening of the brickwork. It acts as a shield to protect your chimney masonry from outside elements.

The primary function of the chimney crown is waterproofing. By preventing water from entering the chimney, the crown protects the chimney’s interior and exterior from moisture damage. The most common material used for chimney crowns is concrete. A properly constructed concrete crown should have a minimum thickness of two inches and be reinforced. It should have an outward slope to help water runoff and not collect on top of the chimney. Other materials like metal or stone can also be used, depending on the design, aesthetic, and budget preferences.

A properly installed and maintained top is a crucial component of the chimney structure for several reasons, including:

• Longevity: The chimney crown’s primary function is to protect it from water damage, which is the leading cause of chimney failure. A well-maintained crown can extend the life of your chimney by preventing water from damaging the brick structure. Moisture in the chimney can also cause the damper to rust, preventing it from opening, and leading to a CO2 buildup in the home.

Chimney Flashing

Flashing is a weather-resistant sealant installed around the base of a chimney to prevent water from seeping into the home. Its function is to divert water away from the chimney and seal gaps between the chimney and the roof.

Chimney flashing is important because it protects against water damage and chimney leaks. Without proper flashing, rain, and snow melt can seep into the attic, roof, and interior walls around the chimney. If left unaddressed, this can lead to mold, rot, and structural issues.

Flashing is typically made of aluminum, stainless steel, or copper and is installed in overlapping sections around the chimney base. For the most protection, flashing should extend under the roof shingles and up the sides of the chimney several inches.

Improper or damaged chimney flashing should be repaired or replaced as soon as possible. Missing, cracked, or corroded flashing leaves a home vulnerable to water leaks and the serious damage that can result.

Chimney Liner

A chimney liner is a protective duct or coating inside a chimney that contains combustion byproducts and directs them outside while protecting the chimney walls. These liners are typically made of clay, aluminum, or stainless steel. Clay liners can withstand high temperatures but may be rigid to install. Stainless steel liners are flexible and suitable for relining or repair but are more expensive.

A proper chimney liner is important for both safety and function. A damaged chimney liner is a serious issue that can lead to fire, carbon monoxide leaks, and other hazards. It is not advisable to use a fireplace or wood-burning stove without a proper liner. Having a professional inspect and repair or replace the liner if needed is essential for safety and to prevent chimney damage.

Throat Damper

A throat damper is a metal plate or valve located in the throat of a chimney, where the fireplace or stove connects to the chimney. Its function is to control airflow from the fireplace or stove into the chimney, which regulates combustion and the intensity of the fire. It is an important chimney part because it allows for control over the fire and heat output. Opening the throat damper increases airflow and allows the fire to burn stronger while closing it reduces airflow to dampen the fire.

Adjusting the throat damper is important for regulating fire intensity, reducing heat loss, and ensuring the safe and efficient operation of a wood-burning system. A damaged, stuck, or improperly adjusted throat damper can lead to difficulty controlling the fire, excessive drafts, and other issues. It is best to have a professional inspect and repair or replace the throat damper if needed to ensure it is functioning properly and the wood-burning system is operating safely and effectively.

Smoke Chamber

The smoke chamber is the space located just above the throat damper in a chimney. Its function is to compress and direct the smoke and other byproducts of combustion from the fireplace up through the flue and out of the chimney.

The smoke chamber is unique because it helps to slow down the flow of smoke and direct it upwards. It is typically shaped like a funnel to help concentrate the smoke and direct it toward the flue.

The smoke chamber is an essential component of a chimney system because it helps prevent creosote accumulation and other flammable materials that can lead to fires. A properly functioning and well-maintained smoke chamber can help improve the efficiency and safety of a fireplace and chimney system.

Chimney Masonry

Old masonry chimneys are constructed of brick, stone layered, and mortared together. Proper maintenance, repair, and periodic replacement of the masonry materials are important for the longevity and safety of a brick and stone chimney. Over time, bricks, mortar, and other materials can crack, erode, or degrade from exposure to heat and moisture. Crumbling or damaged masonry can allow combustion byproducts to leak into the home and the chimney to be less efficient or even collapse.

To keep a masonry chimney in good working order, it is a good idea to have it inspected annually and follow the recommendations of a professional mason. This may include reapplying sealant, replacing damaged bricks or mortar, or rebuilding sections of the chimney if significant deterioration is detected. Protecting and properly maintaining a masonry chimney helps ensure it vents safely and effectively for many years.

Fireplace Components

A fireplace consists of several components that work together to contain a fire and direct byproducts outside. Key components include:

• Firebox: The firebox holds the fire and is typically constructed of firebrick or other heat-resistant material. Its purpose is to withstand the high temperatures of fire while protecting the surrounding structure.
• Hearth: The hearth is the fireproof area in front of the fireplace. Its purpose is to provide a safe surface for working with fireplace tools and wood. The hearth must extend a minimum distance from the firebox for safety.
• Mantel: The mantel is a decorative component that sits above the firebox. Its purpose is to enhance the style and surround of a fireplace while protecting the area above from heat damage.
• Glass doors: Glass doors can be installed in front of the firebox to provide a barrier while allowing views of the fire. Their purpose is to prevent cold drafts or sparks from escaping the firebox while shielding the flames from children and pets.
• Insert: An insert is a self-contained fireplace unit inserted into an existing masonry or prefab fireplace. Its purpose is to provide a more efficient, cleaner-burning fireplace system. An insert includes the firebox and may have additional features like blowers to circulate heat.

The components of an interior fireplace work together to securely house a fire and direct byproducts outside while allowing enjoyment of the flames. For safe, efficient, and proper operation, fireplace components should be properly installed and maintained.

Do You Need to Hire Chimney & Fireplace Expert?

Due to the complex nature of chimneys and fireplaces and the dangers of carbon monoxide leaks or chimney fires, if parts are damaged or installed incorrectly, it is a good idea to have a professional chimney specialist inspect the system at least once per year. A chimney specialist has the knowledge and equipment to thoroughly check all components for any degradation, blockages, or other issues and address them to keep the fireplace and chimney functioning safely and effectively. They can also provide guidance on properly caring for the system and using the fireplace to maximize efficiency and enjoyment.

Conclusion:

It is important for homeowners to understand the functions of the various chimney and fireplace components. Knowing the purpose of each part helps in properly operating and maintaining the fireplace and chimney system. By recognizing how each component contributes to safe and efficient operation, homeowners can identify issues early before they become serious problems.
