Are Stair Step Cracks Serious Issue?

What are Stair-Step Cracks?

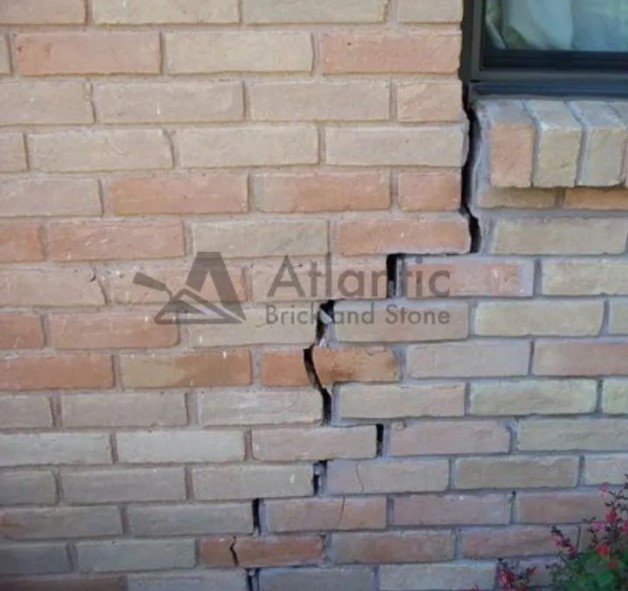

Stair-step cracks get their name from their distinctive stair-like pattern where the cracks appear one above the other in successive steps. They typically form at a slight diagonal angle through foundation walls, basement floors, and porches or patios supported on grade beams or perimeter walls. The cracks run from the bottom upward at roughly a 45-degree angle.

Different Types of Stair-Step Cracks

• Foundation Settlement Cracks: These occur when part of the foundation settles or subsides more than surrounding areas, causing diagonal cracks. This is often due to poor soil, filling, or moisture under part of the footing.
• Bowing Wall Cracks: Form when one area of a foundation wall moves outward or rotates inward relative to adjacent wall sections. Causes include differential settlement, hydrostatic pressure, or improper installation of plumbing or floor joists.
• Shrinkage Cracks: Fresh concrete foundations undergo natural shrinkage as they cure, which can cause diagonal stair-step patterns, though these are often harmless.
• Thermal Expansion and Contraction Cracks: Repeated heating and cooling of foundation materials over years can spur stair-step cracking over time.
• Vibration Cracks: Ground tremors from heavy machinery, pile driving, or seismic activity can induce cracks if the foundation can’t flex to tolerate vibrations.
• Small and Isolated Hairline Cracks: These minor cracks, typically less than 1/8 inch wide, often don’t indicate serious issues.

Causes of Stair-Step Cracks

Understanding what might be causing the cracks can help gauge their severity. Common causes include:

Foundation Problems

Uneven soil conditions, with some portions containing more compressible clay or fill, can lead to differential settling. This uneven settling strains foundation materials and forms stair-step cracks. Lateral deflection also occurs when one area of the foundation wall bends or bulges outward compared to adjacent sections.

Material Issues

Wet concrete or mortar shrinks slightly as it dries, which can lead to stair-step cracking patterns. Repeated heating and cooling of foundation walls from temperature changes produces expansion and contraction, leading to diagonal cracking over time.

Vibrations

Strong ground shaking from seismic events or intense construction vibrations can induce stair-step cracks if the foundation lacks flexibility. Pile driving and soil compacting close to the structure can also transmit vibrations.

Improper Construction

Construction errors such as insufficient reinforcement, incorrect mix design for concrete, or improper compaction of fill can result in increased movement over time, leading to stair-step cracks. Foundation walls that are too short or lack lateral bracing are especially prone to cracking.

Indications of Seriousness

Several factors help determine the seriousness of stair-step cracks and whether they require repair:

Size and Shape

Wider cracks are riskier than hairline cracks as they indicate greater movement. Cracks over 1/4 inch wide suggest extensive differential foundation movement below. Cracks forming a V-shape on the surface may indicate more serious issues.

Location

Cracks near corners experience added strain due to abnormal rotation or twisting, making them more prone to further enlargement. Foundation corners already experience more stress, so cracks in these locations often correspond to more substantial foundation defects.

Age and Material of the Building

Older masonry homes with rigid walls are more sensitive to cracks because their materials do not adjust well to movement. Cracks in older homes are often red flags for foundation instability developed over time.

Speed at Which the Crack Spreads

Slow cracks reflect minor settling that the structure has accommodated, while quickly enlarging cracks suggest ongoing movement that could compromise structural integrity.

How to Deal with Stair-Step Cracks

Steps to Take Once a Crack is Discovered

• Measure crack widths periodically to monitor for changes.
• Photograph cracks for documentation over time.
• Have the foundation inspected by a local foundation contractor to identify severity and causes.

Dealing with Hairline Cracks

Minor hairline cracks can be sealed by foundation contractors using flexible crack sealants that expand and contract with foundation movement. Epoxy crack bridging fills and bonds cracks to prevent water infiltration temporarily while monitored.

Permanent Repairs

For active cracks 1/4 inch or wider in critical load-bearing areas, structural solutions may be needed. Concrete crack injection by foundation specialists uses epoxy under pressure to fully penetrate and lock cracks. Underpinning transfers structural loads around problem areas to stable soil with piers, anchors, or subsurface walls. Polyurethane foam crack injection can also stabilize cracks to prevent widening. A trained foundation repair specialist can evaluate and recommend the right repair.

Contact Your Local Masonry Repair Contractor in Fredericton

Atlantic Brick and Stone is an expert masonry repair contractor serving Fredericton and surrounding areas. With over 15 years of experience, we handle everything from small crack repairs to full foundation underpinning projects. For an honest inspection and free quote, contact us today. Our masonry professionals can evaluate your stair-step cracks and develop a tailored plan to resolve any related foundation issues.

Final thoughts

Minor isolated stair-step cracks in basement floors or foundations are common over time. Factors like crack size, location, growth rate, and other foundation signs help determine the level of concern. Routine maintenance and managing water can reduce significant cracking chances. Consult a professional if cracks become substantial or rapidly change, as active foundation movement could make the structure vulnerable. Staying proactive ensures early detection before expensive repairs are needed.

FAQ About Stair-Step Cracks

• Can step cracks be repaired? Smaller stair-step cracks less than 1/4 inch can often be filled, sealed, or injected to halt movement. Extensive cracks may need structural underpinning.
• How do you know if cracks are serious? Evaluate crack size, location in load-bearing areas, growth rate, and other signs of foundation distress. Consulting an expert determines the repair level needed.
• Do cracks in brick always mean foundation problems? Not necessarily. Minor shrinkage cracks are common and may not signify serious trouble. Assess factors like crack size, location, soil, and moisture issues for structural implications.
• Will patching stair-step cracks work? Sealing or patching hairline cracks can address cosmetic issues above-grade. True foundation repair may need structural solutions like epoxy injection based on size, cause, and monitoring over time.
