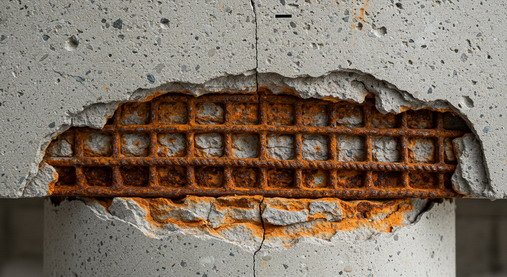

What are the Signs of Corrosion in Reinforced Concrete?

Rust stains and cracks

When you spot reddish-brown streaks flowing down your concrete walls, you’re witnessing one of the earliest visible warnings of concrete corrosion. These rust stains emerge when your steel reinforcement corrodes, creating rust that travels through existing cracks. You will typically see these stains forming patterns that follow water natural path.

Your concrete faces particular risk when exposed to chloride ions from sea spray or de-icing salts. By the time you notice these stains, significant corrosion damage may already exist within your concrete structure.

Cracking and spalling

Your reinforced concrete undergoes significant stress when corrosion occurs. The steel reinforcement expands up to six times its original size during corrosion, creating intense internal pressure. You will observe cracks developing parallel to where your rebar lies.

Your concrete cover, designed to protect the steel reinforcement, starts breaking away in pieces through spalling. This deterioration process leaves more of your reinforcing steel vulnerable to moisture and oxygen, speeding up the corrosion cycle.

Efflorescence and white patches

You will often notice white, chalky deposits on your concrete surfaces. This efflorescence occurs as water carries dissolved calcium hydroxide from your cement paste to the surface, where it reacts with carbon dioxide.

While you should not confuse efflorescence directly with corrosion, it signals moisture movement within your concrete structure. This moisture can penetrate the concrete and contact your steel reinforcement, potentially triggering or accelerating corrosion.

Brown patches

You will recognize brownish discoloration appearing in specific patterns on your concrete surface. These brown patches typically align with your underlying rebar layout, indicating corrosion products moving through your concrete via moisture.

When you see these patches, it means your concrete’s protective properties have failed, either through carbonation or chloride attack. This failure allows moisture and oxygen to reach your steel reinforcement, promoting further corrosion.

Water staining and pitting

You can identify water staining as darker areas on your concrete surface, often accompanied by small holes or pits. These pits develop when corrosive substances breach your concrete cover, creating localized deterioration zones.

When you find pitting, it indicates that aggressive agents like chloride ions have compromised your concrete’s protective layer. This damage reduces both your concrete durability and its capacity to shield the reinforcing steel from corrosion.

Delamination

When you tap your concrete surface and hear a hollow sound, you are likely dealing with delamination. This separation of concrete layers results from steel reinforcement corrosion. Your corroding steel generates pressure that destroys the bond between concrete and steel.

This separation significantly weakens your reinforced concrete structure integrity and can lead to concrete failure without proper intervention.

Increased crack width and frequency

You will observe your existing cracks growing wider while new ones form. This progression shows active corrosion deteriorating your concrete structure. The tensile forces from your expanding corroded steel cause this multiplication and widening of cracks.

7 common causes of corrosion in reinforced concrete

Here are the common causes of corrosion in reinforced concrete, explained in straightforward terms you can easily understand:

1. When chloride ions from road salts or sea air seep through your concrete’s pores and reach the steel reinforcement, they break down its protective layer. This creates rust that expands and puts pressure on your concrete from within, leading to cracks and surface damage.
2. Your concrete naturally contains calcium hydroxide, which reacts with carbon dioxide from the air in a process called carbonation. This reaction lowers the concrete’s pH level, making your steel reinforcement more susceptible to corrosion. The deeper this process goes, the more vulnerable your structure becomes.
3. In certain cases, your concrete aggregates might react with alkalis in the cement paste, creating a gel that swells when it absorbs water. This internal pressure causes extensive cracking throughout your structure and compromises its strength.
4. If your concrete is highly permeable, it acts like a sponge, allowing water, oxygen, and harmful chemicals to easily reach the steel reinforcement. The more porous your concrete, the faster corrosion can develop.
5. Natural cracks in your concrete from shrinkage or structural loads create direct pathways for corrosive substances. Think of these cracks as shortcuts that let harmful elements bypass your concrete’s protective properties and reach the steel faster.
6. Using substandard materials during construction puts your structure at greater risk. Poor-quality aggregates and steel reinforcement with inadequate protective properties make your concrete more vulnerable to corrosion from the start.
7. Your environment plays a crucial role – particularly moisture and humidity levels.

Each of these causes can work alone or combine to accelerate the deterioration of your reinforced concrete structure. Understanding these mechanisms helps you identify potential problems early and take appropriate preventive measures.

Is corrosion in reinforced concrete repairable?

You will be relieved to know that corrosion damage in your reinforced concrete can be effectively repaired. The key lies in quick action once you spot the warning signs. Your first step should be getting a professional assessment to determine how deep the corrosion extends.

A qualified concrete repair contractor in Fredericton will evaluate the damage and develop a targeted repair strategy. They will remove damaged concrete, treat corroded steel reinforcement, and apply specialized repair materials that match your existing concrete’s properties.

The repair process often includes installing protective measures to prevent future corrosion. This might involve applying corrosion inhibitors, waterproof coatings, or cathodic protection systems to safeguard your structure’s longevity.

Contact Atlantic Brick and Stone in Fredericton for expert concrete repair services. Our experienced team specializes in corrosion repair and prevention, ensuring your structure remains safe and durable for long time.

Summary

• Rust stains and cracks are early signs of corrosion, indicating that chloride ions have penetrated the concrete and compromised the steel reinforcement.
• Corrosion causes significant stress, leading to cracking and spalling as the expanding steel pushes against the surrounding concrete layers.
• White patches, known as efflorescence, signal moisture movement within the concrete, which could lead to increased corrosion risk.
• Brown patches in concrete surfaces indicate that corrosion products are migrating through the material, showing that protective properties have failed.
• Water staining and pitting represent localized deterioration, suggesting aggressive agents like chloride ions are penetrating the protective layer of the concrete.
• Delamination occurs when there’s a separation of concrete layers due to corroding steel, resulting in weakened structural integrity.
• Corrosion can be repaired by professional concrete or masonry repair contractors who assess damage, remove affected areas, treat rusted steel, and apply protective measures to prevent future issues.

FAQ’s about corrosion in reinforced concrete

How do you assess corrosion in concrete?

You can perform visual inspections, conduct hammer testing for hollow sounds, and use specialized tools like half-cell potential meters. We also may help you through electrochemical testing methods to measure corrosion rate and extent.

How to prevent rebar corrosion in concrete?

You should start with proper concrete mix design, ensure adequate concrete cover, and use corrosion inhibitors. You can protect your structure by applying protective coating to reinforcement, maintaining good drainage, and implementing appropriate concrete waterproofing.
